Shipping Equipment

Shipping Equipment

Our container fittings and shipping supplies are all manufactured to international safety standards - works certificates and / or DNV type approvals are available upon request at the point of order. These ensure that our goods are tested and checked vigorously before even leaving the factory. Please inquire for more information regarding your specific product.



*Please do not hesitate to get in touch if you have a product in mind that you cannot see: we are likely able to source this for you.

Lashing Chains & Fittings

Lashing Chains

Primarily used for securing cargo and ensuring safe transit of goods on vessels.



Please see other items frequently used with our selection of lashing chains:



Tension Levers / Elephants Feet / D-Rings / Fixed Sockets





Lashing Chain 6m x 13mm Hook & Hook each end



SWL: 100KN / MBL: 200KN / Weight: 19KG

Lashing Chain 3m x 13mm Hook one end only



SWL: 100KN / MBL: 200KN / Weight: 9.95KG

Fittings for Chains

Primarily used for securing cargo alongside chains and ensuring safe transit of goods on vessels.



Please see other items frequently used with our selection of fittings:



 Lashing Chains / D-Rings / Fixed Sockets





AST-31 - Speedlash with Elephant Foot



SWL: 100KN / MBL: 200KN / Weight: 6.6KG

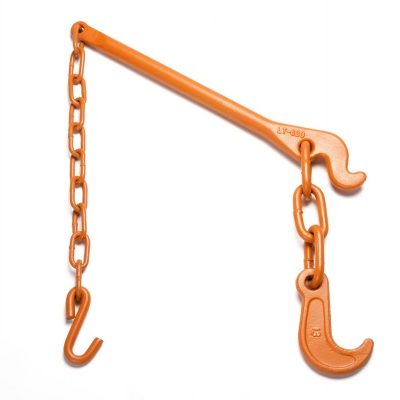

LT-620 - Tension Lever for Lashing Chain 13mm



SWL: 100KN / MBL: 200KN / Weight: 5.58KG

HO-50 - Elephant Foot Eye for Turnbuckle 50T



SWL: 100KN / MBL: 200KN / Weight: 1.84KG

HO-1421 - Elephants Foot Clevis Type 20T



SWL: 100KN / MBL: 200KN / Weight: 1.13KG

HO-220 - Elephants Foot Eye Type 20T



SWL: 100KN / MBL: 200KN / Weight: 0.79KG

HO-1321 - C-Hook 13mm 20T



SWL: 100KN / MBL: 200KN / Weight: 1.43KG

D-Rings

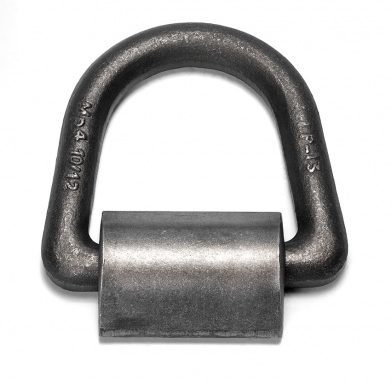

Standard D-Rings

Primarily used for fixing to the ships deck and ensuring safe transit of goods on vessels.



Please see other items frequently used with our selection of D-Rings:



Lashing Chain & Fittings / Fixed Sockets

LP-13 - 20T D-Ring with Bracket



SWL: 100KN / MBL: 200KN / Weight: 1.4KG



D-Ring alone: 0.95KG



Bracket alone: 0.45KG





LP-12 - 36T D-Ring with Bracket



SWL: 180KN / MBL: 360KN / Weight: 2.60KG



D-Ring alone: 1.80KG



Bracket alone: 0.8KG





LP-14 - 50T D-Ring with Bracket



SWL: 250KN / MBL: 500KN / Weight: 4.25KG



D-Ring alone: 2.61KG



Bracket alone: 1.64KG





LP-67 - 67T D-Ring with Bracket



SWL: 335KN / MBL: 670KN / Weight: 4.64KG



D-Ring alone: 3.24KG



Bracket alone: 1.4KG





Double D-Rings

LP-17 - 36T Double D-Rings with Bracket - bundle only



SWL: 180KN / MBL: 360KN / Weight: 5KG









Turnfoot D-Rings

LP-18 - 50T Double D-Rings with Bracket - bundle only



SWL: 250KN / MBL: 500KN / Weight: 8.09KG









LP-16 - Turnfoot 40T D-Ring



SWL: 200KN / MBL: 400KN / Weight: 6.09KG









Breech-Base D-Rings

LP-21 - Breech-Base D-Rings 36T



SWL: 180KN / MBL: 360KN / Weight: 6.57KG

Dovetail D-Rings

LP-91-45 - Dovetail D-Ring 45° 36T



SWL: 180KN / MBL: 360KN / Weight: 6.8KG



LP-91-55 - Dovetail D-Ring 55° 36T



SWL: 180KN / MBL: 360KN / Weight: 7.2KG

Fixed Sockets

Primarily used for fixing to the ships deck and ensuring safe transit of goods on vessels.



Please see other items frequently used with our selection of lashing chains:



Lashing Chain & Fittings / D-Rings





LP-61 - Raised Cloverleaf Socket



SWL: 2 x 100KN / MBL: 2 x 200KN / Weight: 4.57KG

LP-62 - Raised Cloverleaf Socket Half



SWL: 2 x 100KN / MBL: 2 x 200KN / Weight: 3.14KG

LP-81-B - Flush Cloverleaf Socket



SWL: 2 x 100KN / MBL: 2 x 200KN / Weight: 7.19KG

LP-82-B - Flush Cloverleaf Socket Half



SWL: 2 x 100KN / MBL: 2 x 200KN / Weight: 6.4KG

LP-66 - Raised Carlashing Socket



SWL: 20KN / MBL: 40KN / Weight: 0.71KG

RoRo Extras

Rubber Chocks

Primarily used for securing cargo and ensuring safe transit of goods inside containers or on the ships deck.



We also have access to supplying rubber trailer trestles and other parts for trailers but are not in stock currently, please contact us for more information.



*Please do not hesitate to get in touch if you have a product in mind that you cannot see: we are likely able to source this for you.









WC-1 - Rubber Car Chock



Weight: 1.21KG





WC-2 - Rubber Trailer Chock



Weight: 5.73KG

Trailer & Car Lashings

CARL-20 - Car Lashing Hook each end



SWL: 10KN / MBL: 20KN

WL-120-3-HK-EF - Trailer Lashing 3m x 12T Hook & Elephants Foot



SWL: 60KN / MBL: 120KN

WL-40-5-HK-EF - Trailer Lashing 5m x 5T Hook & Elephants Foot



SWL: 25KN / MBL: 50KN
