Container Securing
Our container fittings and shipping supplies are all manufactured to international safety standards - works certificates and / or DNV type approvals are available upon request at the point of order. These ensure that our goods are tested and checked vigorously before even leaving the factory. Please enquire for more information regarding your specific product.
*Please do not hesitate to get in touch if you have a product in mind that you cannot see: we are likely able to source this for you.
Twist Locks
Stacking Twist Locks
Primarily used for stacking / locking containers and fixing them to the ships deck or base.
Please see items frequently used with our selection of stacking twistlocks:
IF-51-L - Stacking Twist Lock Left Locking
IF-51-R - Stacking Twist Lock Right Locking
SWL: 250KN / MBL: 500KN / Weight: 4.73KG
IF-51-BST-L - Stacking Twist Lock Big Base Left Locking
IF-51-BST-R - Stacking Twist Lock Big Base Right Locking
SWL: 250KN / MBL: 500KN / Weight: 6.3KG
IF-56 - Stacking Twist Lock Semi Automatic
SWL: 250KN / MBL: 500KN / Weight: 5.39KG

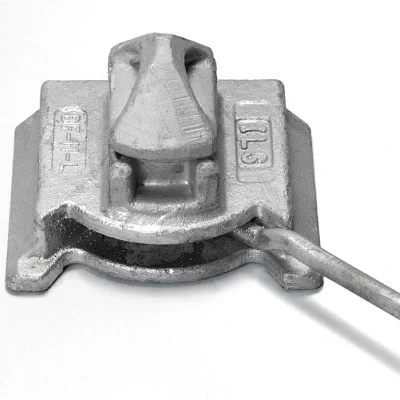

Dovetail Twist Locks
Primarily used for fixing containers to a ships deck or base.
Please see items frequently used with our selection of dovetail twistlocks:
BF-11-45-L - Dovetail Twistlock 45° Left Locking
BF-11-45-R - Dovetail Twistlock 45° Right Locking
SWL: 250KN / MBL: 500KN / Weight: 6.41KG
BF-11-55-L - Dovetail Twistlock 55° Left Locking
BF-11-55-R - Dovetail Twistlock 55° Right Locking
SWL: 250KN / MBL: 500KN / Weight: 7.2KG
Breech base Twistlocks
Primarily used for fixing containers to a ships deck or base as an alternative to the more commonly used dovetails.
Please see items frequently used with our selection of breechbase twistlocks:
BF-66-L - Breech Base Twistlock Left Locking
BF-66-R - Breech Base Twistlock Right Locking
SWL: 250KN / MBL: 500KN/ Weight: 5.51KG
BF-11-45-LL-L - Dovetail Twistlock 45° Line Load Left Locking
SWL: 250KN / MBL: 500KN / Weight: 6.63KG
BF-11-55-LL-L - Dovetail Twistlock 55° Line Load Left Locking
SWL: 250KN / MBL: 500KN / Weight: 7.6KG
BF-16-45-L - Trans Dovetail Twistlock 45° Left Locking
SWL: 250KN / MBL: 500KN / Weight: 6.8KG
Sockets & Fittings
Dovetail Sockets
Primarily used for fixing containers to a ships deck or base.
Please see items frequently used with our selection of dovetail twistlocks:

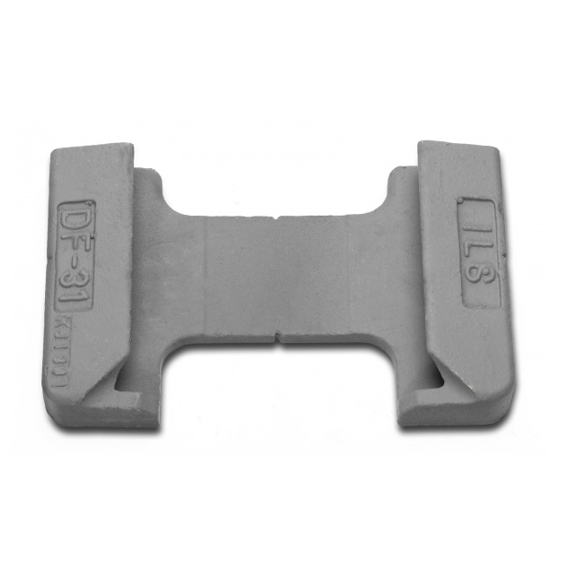

DF-31-45 - Dovetail Socket 45°
SWL: 250KN / MBL: 500KN / Weight: 3.68KG
DF-31-55 - Dovetail Socket 55°
SWL: 250KN / MBL: 500KN / Weight: 3.73KG

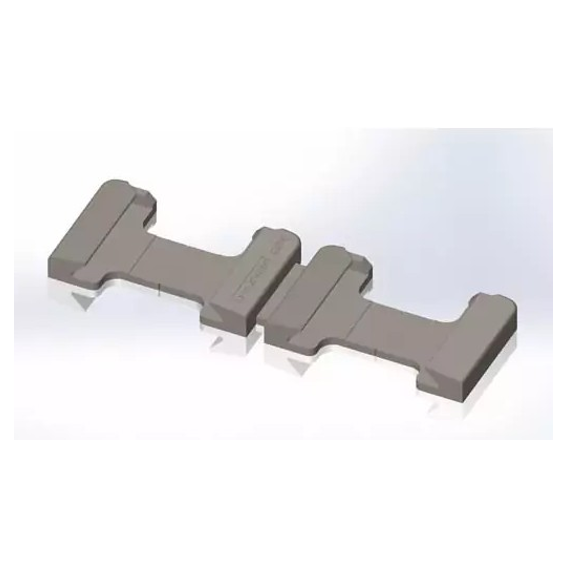

DF-32-45(25) - Double Dovetail Socket 45° 25mm
SWL: 250KN / MBL: 500KN / Weight: 6.28KG
Breech Base Decksockets
Primarily used for fixing containers to a ships deck or base as an alternative to the more commonly used dovetails.
Please see items frequently used with our selection of Breech Base decksockets:
DF-66 - Breech Base Decksocket
SWL: 250KN / MBL: 500KN / Weight: 2.92KG
ISO Decksockets
Primarily used for fixing containers to a ships deck or base.
Please see items frequently used with our selection of ISO decksockets:
DF-41 - Raised ISO Decksocket
SWL: 250KN / MBL: 500KN / Weight 6.21KG
DF-42(80) - Double Raised ISO Decksocket 80mm
SWL: 250KN / MBL: 500KN / Weight: 13.6KG
Stacking Cones & Pins
Stacking Cones
Used for stacking containers on top of eachother and ensuring containers do not slide or move whilst stacked.
IF-97-N - Self Hanging Stacking Cone
SWL: 210KN / MBL: 420KN / Weight: 1.47KG
IF-98-N - Self Hanging Stacking Cone
SWL: 210KN / MBL 420KN / Weight 2.51KG
IF-99 - Self Hanging Stacking Cone
SWL: 210KN / MBL: 420KN / Weight 2.96KG
IF-11 - Intermediate Stacking Cone
SWL: 210KN / MBL: 420KN / Weight: 3.12KG
Guide Cones & Pins
Used for guiding ISO corners in to place for each corner of the container.
The two products below must be used in conjunction with eachother to work.
GC-5 - Guide cone lockable
SWL: 210KN / MBL: 420KN / Weight: 1.3KG
BP-1 - Blocking Pin for GC-5
SWL: 150KN / MBL: 300KN / Weight: 0.75KG
Screwbridge Fittings
Used for fixing the ISO Corners of containers together so when stacked, they are more stable and safe.
Please see items frequently used with our selection of screwbridge fittings:
SB-1 (280) - Screwbridge Fitting 280mm
SWL: 50KN / MBL: 100KN / Weight: 3.04KG
SB-1 (330) - Screwbridge Fitting 330mm
SWL: 50KN / MBL: 100KN / Weight: 3.35KG

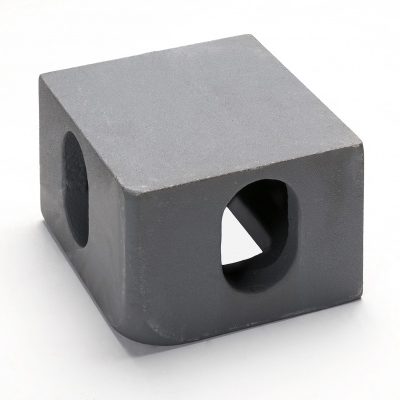

ISO Corners
CO-BR - Bottom Right ISO Corner Casting
CO-BL - Bottom Left ISO Corner Casting
CO-TR - Top Right ISO Corner Casting
CO-TL - Top Left ISO Corner Casting
SWL: 250KN / MBL: 500KN / Weight: 11.32KG
A multi-purpose item, used in the process of moving, stacking and anything in relation to the transportation of containers.
Please see items frequently used with our selection of ISO Corner Castings:
Stacking Twist Locks / Dovetail Twistlocks & Bases / Screwbridge Fittings
Container Door Safety
Our 2 products for ensuring safety upon opening container doors.

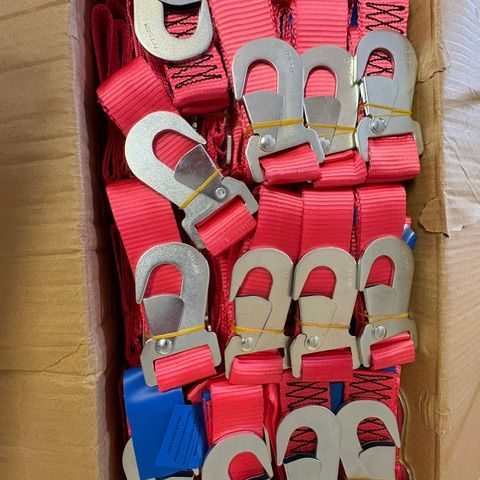

Container Door Straps - for preventing cargo opening the doors of a container too quickly. Personnel unlocking are protected incase doors are sprung open due to cargo.

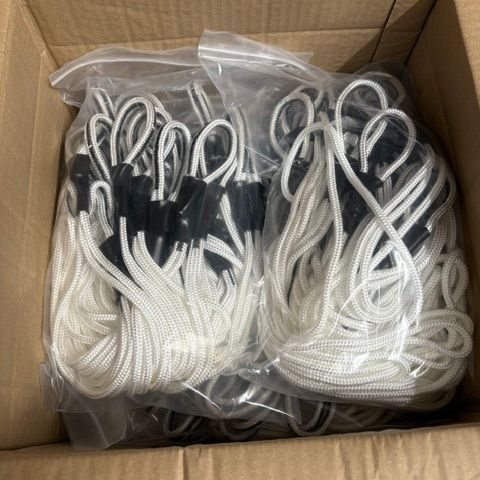

Container Door Cords - for keeping container doors open whilst loading/unloading a container so doors do not slam shut when operating out of it.
